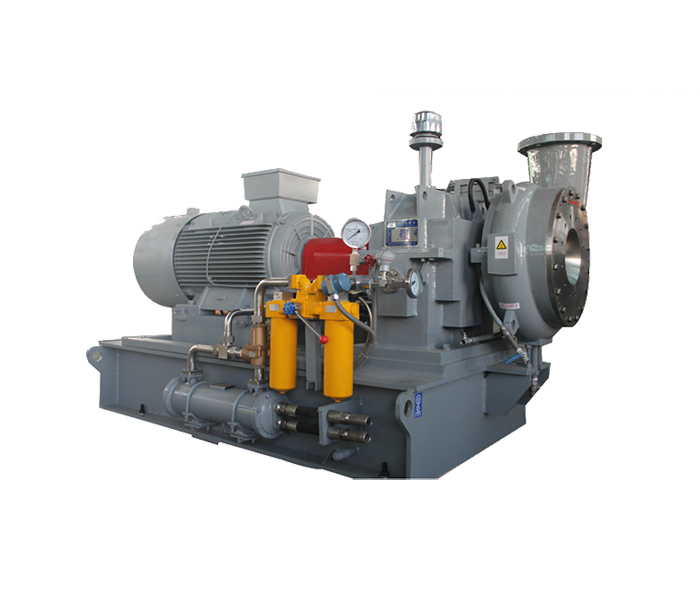

- Product name: MVR Steam compressor
- Product number: LX001
Features
By the Hubei Sanfeng Turbine Equipment Co., Ltd. together with the United States Turbine Technology Corporation, Huazhong University of Science and Technology for the mechanical steam recompression system carefully developed using highly efficient semi-open ternary flow impeller, impeller efficiency over 90%, impeller material selection of titanium alloy Or duplex stainless steel, the case made of stainless steel cast or welded to meet the strength and corrosion resistance requirements, the use of frequency control methods to achieve maximum adjustment range and energy efficiency.
Application range
Widely used in environmental protection, wastewater treatment, petroleum, chemical industry, food and additives industry, pharmaceutical and biological engineering, desalination, printing and dyeing, power plants and other fields.
Technical Parameters
Model |
Import temperature(℃) |
Evaporation(T/h) |
Saturated temperature rise(℃) |
Motor Power(KW) |
SFV |
50~110 |
1~250 |
8~24 |
15~13000 |
